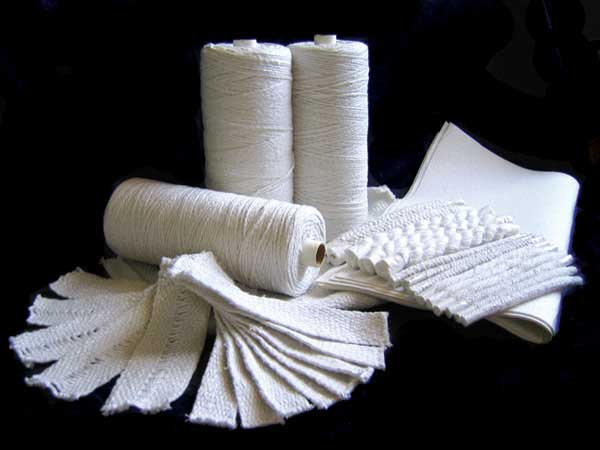

Ceramic Textiles

Today, we are well reckoned among the key manufacturers and exporters of Ceramic Textiles. To meet the different needs of the clients, we offer Ceramic Textiles in varied grades and dimensions. Manufactured from the optimum quality materials, our Ceramic Textiles are durable as well as high performing.

Specifications :-

Grades (1)Fiber Glass Reinforced
(2)S.S wire Reinforced
Classification Temperature(oC) (1)1260
Thickness Cloth - 2,3 mm.
Rope is available in diameter 6, 12, 19, 25, 38 & 50. Other diameters on request.
Tape - 3mm. Available in 25, 50, 75, 100, 125, 150 mm width. Other widths on request.
Dimensions (mm) Cloth - 1 mtr. Wide, 10 mtr. long.
Rope & Tape - 25 mtr. Coils
Density (kg/m2) Cloth & Tape 1.1 kg/m2
Rope 330 kg/m2
Depending on diameter
Thermal Conductivity (W/mK) (at mean temperature of 600oC depending on density ) -
Application Areas Available for Temperature 1260°C in FG & SS Reinforced. Cloth is used as thermal curtains, welding curtains, Tape and Rope are used for inspection door seals, gaskets, flange seals, expansion joints, pipe lagging, cable protection, Gas turbine insulation.
